What to do when an AI Agent can read files but cannot upload them: Troubleshoot with 7 checkpoints

When an AI Agent can read a file but fails to upload, transfer, or submit it, the issue is usually not that “the model does not support files.” More often, the cause lies in the execution chain: the target tool lacks write permission, the file path is valid only in a temporary environment, the receiving system rejects the file format or size, or the required submission action is missing after the upload finishes. Preserve the original file and error information first, then check the following items in order instead of repeatedly rerunning the process from the outset.

First, identify the step where the failure occurs

“Upload failure” can refer to at least four different situations: the Agent could not find the file, the Agent read the file but lacked upload permission, the file reached the target page but was not submitted, or the API returned success but the attachment was not visible in the frontend. Each situation requires a completely different solution.

• File not found: Focus on checking the path, whether the file still exists, and whether the execution environment can access the directory.
• Upload request rejected: Check authentication, tool permissions, file type, file size, and receiving-system restrictions.
• File selected on the page but process incomplete: Check whether you still need to click Submit, Save, or Send.
• API succeeds but no attachment appears on the page: Verify the returned attachment ID, the final record ID, and whether the attachment is associated with the correct object.

It is helpful to record three points in time for each failure: when file preparation finished, when the upload request was sent, and when the target system confirmed receipt. This makes it easier to determine whether the problem is on the Agent side, in transit, or at the receiving end.

Checkpoint 1: Is the file path valid only for the current process?

Many Agents place downloaded files, screenshots, or exported results in temporary directories. The file may genuinely exist during the generation step, but that path may no longer be visible after switching to another tool or an independent browser session. Pay particular attention to container paths, remote host paths, and paths on the user’s local machine. They may look similar, but they do not belong to the same file system.

Before uploading, check again that the file exists, verify that its size is greater than 0, and record its final absolute path. If the upload tool requires the file to be copied to a dedicated sandbox first, that preparation step must be completed. You cannot pass an arbitrary local path directly to a web page.

Checkpoint 2: Read permission is not the same as upload permission

An Agent’s ability to read a file proves only that it has read permission for the source directory. Uploading also requires write permission in the target system, the appropriate API authorization scope, and, on some platforms, a separate attachment feature toggle. A read-only token can retrieve records but cannot add attachments to them. Similarly, an account that can edit body content may not be allowed to upload media.

When verifying permissions, do not check only whether the account is “logged in.” Confirm that the current account can manually upload a file to the same target location, and check whether the API or tool authorization includes the ability to create attachments, upload media, or edit the target object. After adjusting permissions, perform a single test with a small file. This makes the outcome easier to diagnose than rerunning the entire workflow.

Checkpoint 3: Do the file format, extension, and MIME type match?

Some receiving systems inspect not only the file extension but also the actual content type. Renaming a PNG file as JPG or declaring the wrong MIME type in the upload request can trigger rejection. Archives, scripts, executable files, and macro-enabled documents are also frequently blocked by security policies.

• Confirm that the extension matches the actual file format.
• Confirm that the upload request uses the correct Content-Type.
• Review the target platform’s list of allowed formats instead of relying on assumptions.
• If the file has been converted, reopen it and verify that its contents are not corrupted.

Checkpoint 4: Does the file exceed the lowest size limit in the upload chain?

The upload limit is not necessarily determined solely by the target website. The reverse proxy, API gateway, automation tool, and site itself may all impose limits, and the lowest of these limits is the one that takes effect. When a file exceeds the limit, some platforms explicitly return 413, some display only “Upload failed,” and others time out after a waiting period.

Start by testing with a very small file in the same format. If the small file succeeds but the large file fails, check the compression strategy, support for chunked uploads, and limits at each layer. Images can be resized and converted to WebP as long as readability is not affected. For documents, avoid reducing size in ways that damage the layout or searchable text.

Checkpoint 5: Does the web upload require an actual file selection process?

File upload controls on web pages differ from ordinary text fields. Pasting path text into a page generally does not transfer the file’s contents. Some automation environments also require a file explicitly selected by the user to be placed in a controlled upload directory before it can be passed to the browser’s file selection control.

Even if the file name already appears on the page, do not assume that the process is complete. Continue by confirming that the upload progress has finished, that a thumbnail or attachment entry has appeared, and whether the page still has a “Save,” “Send,” or “Submit” button. Successful file selection and successful business-process submission are two separate events.

Checkpoint 6: Is the request sent in the format required by the target API?

When uploading through an API, common problems include using the wrong multipart field name, treating binary content as an ordinary string, losing the authentication header after a redirect, and confusing the upload endpoint with the record update endpoint. Review the actual HTTP status code and response body before deciding whether to retry.

Do not retry deterministic errors such as 400, 401, and 403 indefinitely. A 400 response usually requires correcting the request structure, while 401 and 403 require checking authentication or permissions. Only 429, 502, 503, 504, and network timeouts are suitable for a limited number of retries with backoff. Each retry should also use an idempotency key or query the result first to prevent the same attachment from being created more than once.

Checkpoint 7: Is the upload result associated with the correct business object?

Some systems create media first and then associate the media ID with a post, ticket, message, or product. Success in the first step does not mean the second step has been completed. If the attachment does not appear on the final page, check the media ID in the upload response and then confirm that the target record references this ID.

This type of issue also explains why the logs may show 200 even though the user cannot see the file. HTTP success indicates only that a particular request was accepted; it does not replace business-level acceptance testing. The process is complete only after you reread the final page or record and confirm the attachment name, URL, and associated object.

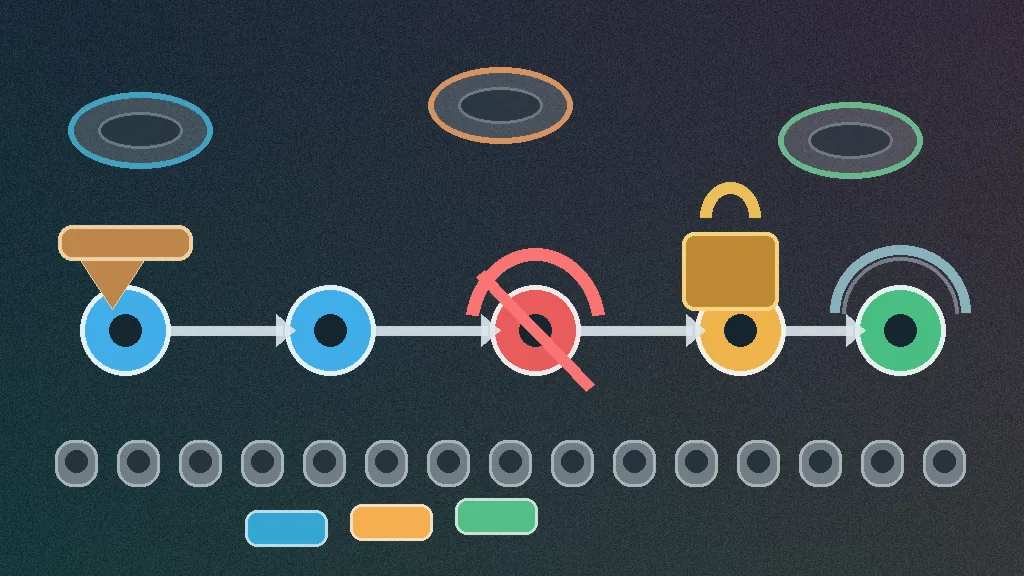

A more reliable sequence for fixing and verifying the issue

When handling production tasks, follow the sequence below to narrow the scope. Change only one variable at each step. This produces much clearer results than repeatedly rerunning the entire process.

1. Save the error code, response body, absolute file path, and file size.
2. Confirm that the file exists and can be reopened.
3. Test the target location with a small file in the same format.
4. Verify the account, token, and attachment write permissions.
5. Check the format, MIME type, field name, and size limits.
6. Complete the post-upload save or association action.
7. Reread the final record and access the public attachment URL to verify the result.

If your workflow also includes automatic retries, fallback procedures, or escalation to a human operator, refer to Methods for recovering from AI Agent workflow failures. When external tool authorization is involved, first use the API, Webhook, and skill integration guide to map the data flow and permission boundaries. For a comprehensive permission review before launch, consult the AI Agent security and privacy checklist.

Frequently asked questions

Why does the upload still fail when the Agent can clearly see the file name?

Seeing the file name does not mean the Agent can access the file contents. The path may belong to another host, a temporary session, or a restricted directory. Before uploading, check the file’s existence and size again, as well as whether the current tool can access its location.

Why is there no attachment on the page when the upload API returns 200?

The process may have created the media item without associating its media ID with the target record. Reread the target object and check whether the attachment field or media reference has been written.

Can an upload be retried automatically forever after it fails?

No. Permission, format, and request structure errors cannot be resolved through retries. Only rate limiting, temporary gateway failures, and network timeouts are suitable for a limited number of retries with backoff, and duplicate attachments must be prevented.

How can you prove that a file upload is truly complete?

At a minimum, reread the final business record, confirm that the attachment is associated with the correct object, and actually access the attachment URL. Checking only the Agent logs or a single API status code is not sufficient.

Perform acceptance testing after the upload action

File upload failures can easily be obscured by the statement “tool call succeeded.” A reliable approach is to record file preparation, transfer, association, and final retrieval separately, with a clearly defined result for each step. SmaugBrain can help teams orchestrate these checks into traceable Agent workflows. Start with one small file and one low-risk target, then connect production tasks after the process works end to end.
